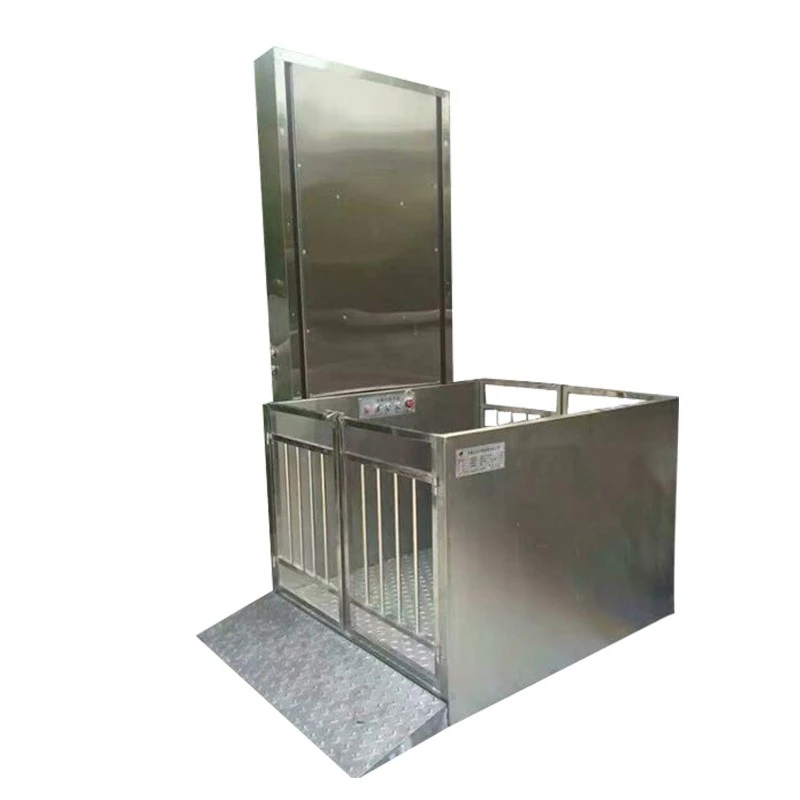

Indoor Wheelchair Lift
| Voltage | 110V/220V/240V/380V/410V (50/60HZ) |
| Lifting height | 30cm to 1000cm(customized) |
| Platform size | 1400mm(L) x 1000mm(W)(customized) |
| speed | 40mm/s |
| Load capacity | 300kg |
| In and out direction | 90° Or 180°(customized) |
| Platform size type | Pattern non-slip metal plate |
| Net weight | >500kg |
| Motor | 1.5KW to 5KW |
| Working environment | Indoor and outdoor |
| working temperature | -20°C - 60°C |
| Installation mode | No foundation pit installation (fixed directly to concrete ground) |
| Emergency stop button | Press the emergency button switch to control the machine to run, rise or fall |
| Aluminum alloy bar | When the platform is lowered will stop running immediately when it encounters an obstacle. |
Key Considerations for Choosing a Chain for a Home Stainless Steel Wheelchair Lift
Home wheelchair lifts must operate safely, smoothly, and reliably. The key component of the transmission structure is the lifting chain. Properly selecting the transmission chain ensures a long service life, stable operation, and compliance with safety requirements.
Key Considerations for Lifting Chain Selection
The chain of a wheelchair lift transmits lifting force and supports the platform load. Key factors include:
① Load Capacity and Safety Factor
The chain must be able to withstand the rated load of the home lift (typically 350 kg) plus the weight of the platform itself. Therefore, most manufacturers use a safety factor of 6–8 times.
Common wheelchair lift chains come in two types:
Plate chains (BL series)
Roller chains (high-strength industrial grade)
When selecting the chain model and specifications, ensure that its load-bearing capacity exceeds the required working load.
② Lifting Height
The higher the lifting height (1-6 meters) of a home vertical lift (VPL), the more necessary it is to have:
Longer chains, larger chain pitch or thicker chain plates, and higher fatigue resistance.
For heights exceeding 3 meters, BL6 or BL8 grade chain plates are typically chosen for better stability.
③ Corrosion Resistance (Crucial for Stainless Steel Lifts)
Since lifts are made of stainless steel, they are usually installed outdoors. Therefore, the chain must also be able to withstand:
Rain
Moisture
Salt spray (coastal areas)
④ Fatigue Strength and Abrasion Resistance
Choose chains specifically designed for:
Continuous lifting cycles
Low elongation
High fatigue resistance
High-quality chains reduce maintenance and prevent elongation problems.
⑤ Sprocket Size Matching
The chain and sprockets must match the following parameters:
Pitch
Width
Tensile strength
Improper matching can lead to noise, wear, and unstable lifting.
