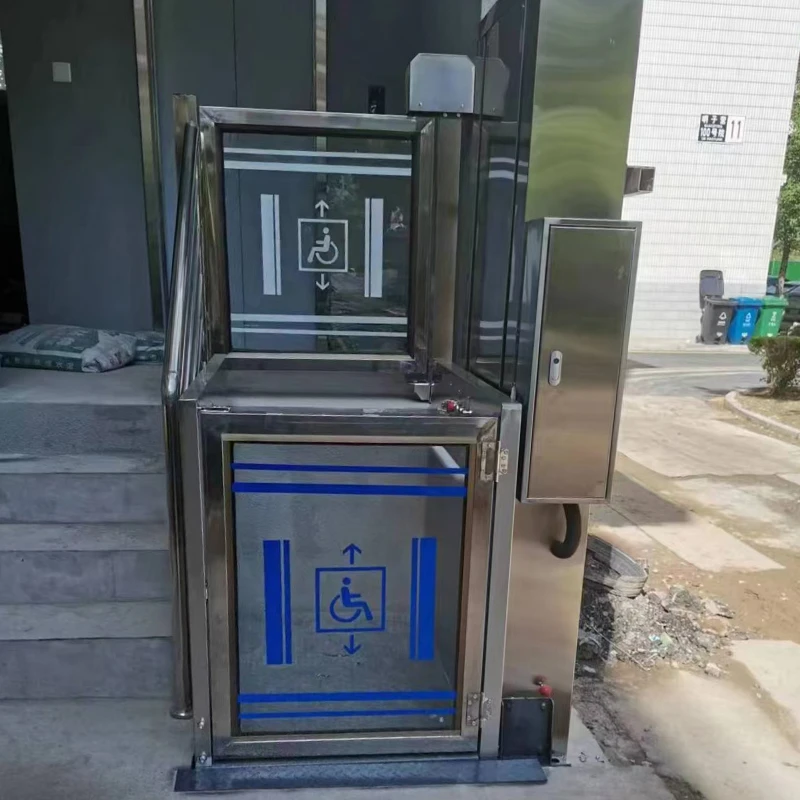

Stainless Steel Wheelchair Lift
Your Professional Stainless Steel Wheelchair Lift Supplier
Qingdao Eterlift Machinery Co., Ltd., located in Qingdao City, Shandong Province, is a manufacturer of lifting platforms integrating R&D, production, manufacturing, and sales. Founded in 1999, the company currently employs more than 10 mechanical engineers, 2 electrical engineers, and over 40 production staff. The company places a strong emphasis on R&D capabilities and currently holds several utility model patents.
Why choose us
Quality Control
We strictly follow national standards and the company's quality system for production, and conduct comprehensive testing and trial runs before shipment to ensure stable and reliable product quality.
Production Market
The products are sold to more than 60 countries and regions in the world, such as Europe, America, Asia, Africa, Oceania, etc., and have won customers with stable quality and first-class pre-sale and after-sales service. Unanimously praised, and established long-term cooperation with distributors in many countries in the world.
Customized Solution Design
Based on the customer's site environment, usage requirements, and budget, we tailor the most suitable equipment solution, including drawing design, layout planning, and technical specifications.
Consulting Services
We provide professional product consulting, including usage scenario analysis, technical parameter explanations, and configuration selection suggestions, to help customers quickly find the most suitable product solution.
|
Voltage |
110V/220V/240V/380V/410V (50/60HZ) |
|
Lifting height |
30cm to 1000cm(customized) |
|
Platform size |
1400mm(L) x 1000mm(W)(customized) |
|
Speed |
40mm/s |
|
Load capacity |
300kg |
|
In and out direction |
90° Or 180°(customized) |
|
Platform size type |
Pattern non-slip metal plate |
|
Net weight |
>500kg |
|
Motor |
1.5KW to 5KW |
|
Working environment |
Indoor and outdoor |
|
Working temperature |
-20°C - 60°C |
|
Installation mode |
No foundation pit installation (fixed directly to concrete ground) |
|
Emergency stop button |
Press the emergency button switch to control the machine to run, rise or fall |
|
Aluminum alloy bar |
When the platform is lowered will stop running immediately when it encounters an obstacle. |
1. Customizable vertical wheelchair lift with load capacity ranging from 250kg to 350kg.
2. Lift height adjustable from 1m to 12m to suit various building requirements.
3. Platform size can be tailored to specific needs for optimal usability.
4. Available in 380v/3ph or 220v/1ph power options, with customization for local power supply.
5. Hydraulic drive system ensures smooth and reliable operation.
6. Multiple control modes including inching switch, automatic, and remote for user convenience.
7. Built-in safety features like emergency stop, safety interlock, and safety sensors for maximum protection.
8. Durable construction with materials like aluminum alloy and 304 stainless steel for long-lasting use.
Below is the service that we provide for the wheelchair lift
Operation manual and video training how to use the machine.
Engineers available to service machinery overseas.
Professional engineer team which can supply 3D proposal drawing and design according to customer request.
12 months warranty period and we will provide the consumable parts at cost price after the warranty period.
1. High pressure hydraulic oil pipe with double steel net
2. Explosion proof value for cylinder
3. Emergency stop button
4. Emergency down valve when power failure
5. The operation must be stopped immediately the safety edge meets
6. obstacles during operation
7. Machine can working when door completely closed
8. Upper final limit safety switch
