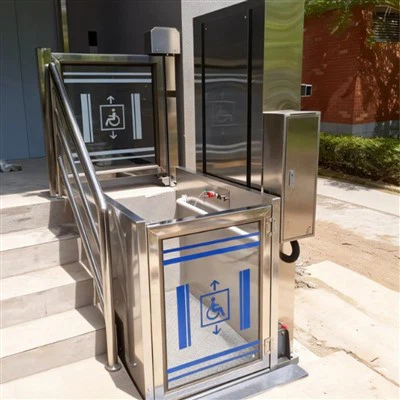

Wheelchair Lift
Your Professional Wheelchair Lift Supplier
Qingdao Eterlift Machinery Co., Ltd., located in Qingdao City, Shandong Province, is a manufacturer of lifting platforms integrating R&D, production, manufacturing, and sales. Founded in 1999, the company currently employs more than 10 mechanical engineers, 2 electrical engineers, and over 40 production staff. The company places a strong emphasis on R&D capabilities and currently holds several utility model patents.
Why choose us
Quality Control
We strictly follow national standards and the company's quality system for production, and conduct comprehensive testing and trial runs before shipment to ensure stable and reliable product quality.
Production Market
The products are sold to more than 60 countries and regions in the world, such as Europe, America, Asia, Africa, Oceania, etc., and have won customers with stable quality and first-class pre-sale and after-sales service. Unanimously praised, and established long-term cooperation with distributors in many countries in the world.
Customized Solution Design
Based on the customer's site environment, usage requirements, and budget, we tailor the most suitable equipment solution, including drawing design, layout planning, and technical specifications.
Consulting Services
We provide professional product consulting, including usage scenario analysis, technical parameter explanations, and configuration selection suggestions, to help customers quickly find the most suitable product solution.
|
Voltage |
110V/220V/240V/380V/410V (50/60HZ) |
|
Lifting height |
30cm to 1000cm(customized) |
|
Platform size |
1400mm(L) x 1000mm(W)(customized) |
|
Speed |
40mm/s |
|
Load capacity |
300kg |
|
In and out direction |
90° Or 180°(customized) |
|
Platform size type |
Pattern non-slip metal plate |
|
Net weight |
>500kg |
|
Motor |
1.5KW to 5KW |
|
Working environment |
Indoor and outdoor |
|
Working temperature |
-20°C - 60°C |
|
Installation mode |
No foundation pit installation (fixed directly to concrete ground) |
|
Emergency stop button |
Press the emergency button switch to control the machine to run, rise or fall |
|
Aluminum alloy bar |
When the platform is lowered will stop running immediately when it encounters an obstacle. |
Wheelchair lifts provide an accessible and safer way for people with mobility impairments to enter and exit a home, and offer the following benefits:
1. Provides safe access to raised entryways (or another floor level that is not accessible)
2. Space saving option for those without enough space outside their home or building for a wheelchair ramp
3. Available for indoor and outdoor applications to improve safe access
4. Multiple entry/exit packages to fit your mobility needs
5. Multiple safety features, including a keyed entry to prevent unauthorized use & ensure peace of mind
Wheelchair lift parts
Battery Backup: Many residential vertical platform lifts include battery backups to safely lower the lift in the event of a power outage.
Drive mechanism: The mechanical or hydraulic system used to raise and lower the lift platform.
Electric drive: A piece of machinery that converts electricity into mechanical motion. Electric drives provide the power for both hydraulic and screw drive lifts, and may use either AC or DC current.
Enclosure: Walls that enclose the lift. Not all wheelchair lifts have enclosures. While not all lifts have enclosures, all lifts must use sidewalls and gates to protect the rider.
Ramp: The ramp provides access to the platform when a pit is not available. Depending on the lift you choose, there may be a folding ramp or a stationary ramp. The folding ramp will fold up when the lift is traveling up, and deploy when the lift reaches the lower landing. The stationary ramp is used mostly on enclosed lifts and does not move with the lift.
Grab rail: A grab rail is a handle the lift user can grip for added safety.
Lift control buttons: Unlike home elevators, a wheelchair lift requires constant pressure be applied to the control button to operate. This provides more control over the lift. For instance, if you were ascending and the doorbell rings, you could just switch to the down button, rather than having to complete your ascent and then descend.
Lift platform: Sometimes called the deck, a wheelchair lift platform is a non-skid surface that has a rough texture allowing the wheels of the wheelchair to easily grip, assisting the user to enter or exit the lift. Lift platforms may use rubber, metal strips or textured paints to achieve the non-skid surface.
Safety sensor: Wheelchair lifts may include under-platform safety sensors that bring the lift to a halt should they detect an obstruction.
Types of wheelchair lifts
While the basic concept of the wheelchair lift is simple enough — a powered platform that raises and lowers wheelchair users — there are a number of residential vertical platform lift models, including:
Residential wheelchair lifts
A simple, one-floor lift that raises the user to the next level. Usually installed next to stairs, a residential wheelchair lift operates vertically rather than following the path of the stairs.
Unenclosed wheelchair lifts
Popular for porch lifts, landscape elevation changes, and mobile home decks, an unenclosed lift has no surrounding walls, and is generally used for raising and lowering wheelchairs no more than a single floor.
Enclosed vertical platform lifts
Completely enclosed for added security, this lift is a popular choice in private residences, but does require slightly more space than an unenclosed lift.
Shaftway lift
Like the enclosed vertical platform lift, the shaftway list is enclosed. The difference is the lift is typically “hidden” behind doors.
Enclosed Plexi-glass lifts
Similar to an enclosed lift, these stylish lifts feature plexi-glass infill enclosure wall panels.
Hybrid wheelchair lifts
Hybrid wheelchair lifts look like home elevators, but have the same constant pressure operating system as a platform lift. With a full-height car, hybrid lifts offer the widest range of optional features and finishes to match the style and decor of your home.
Safety Considerations
Always Use the Lift Properly
Read and understand the manufacturer’s operating instructions and adhere to all safety guidelines.
01
Maintain a Safe Distance
Ensure bystanders and pets maintain a safe distance from the lift while in operation.
02
Secure the Wheelchair
Use the provided tie-down straps or wheelchair locks to secure your wheelchair on the platform.
03
Regular Inspections
Conduct regular visual inspections for any signs of damage or wear and tear.
04
Professional Maintenance
Schedule regular professional maintenance to keep the lift operating safely and reliably.
05
