Freight Elevator
| Model: | CL0.5-220 |
| Load capacity: | 100kg-10ton |
| Platform size : | 1000*1000mm TO 6000*3000mm(customized) |
| Max Lifting height : | 10000mm(customized) |
| Self height: | ≤120mm |
| Platform Material: | 100*50*4mm rectangular tube + 5mm checkered plate Q345B |
| Guide Rails Height : | 1000mm to 10000mm(customized) |
| Guide Rails thickness: | 100mm to 300mm(customized) |
| Guardrail Height : | 1000mm(customized) |
| Guide Rails Material: | 100*100*7H(customized) |
| Hydraulic Cylinders: | Diameter 70mm*1(customized) |
| Pump Motor: | 2.2kw-5.5kw |
| Lifting Chains: | 16A |
| Safety Rope: | Diameter 10mm |

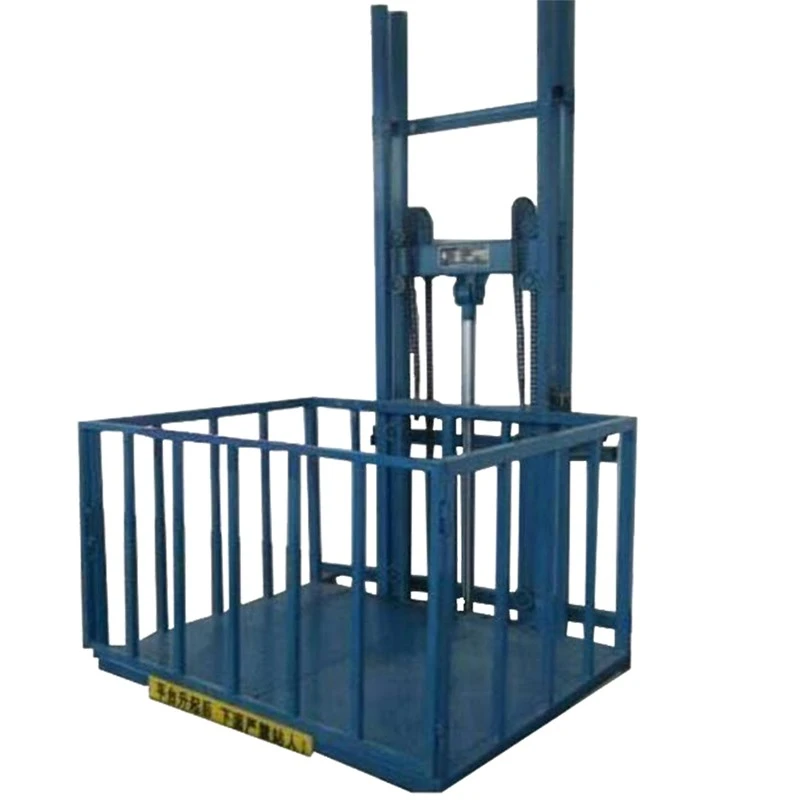

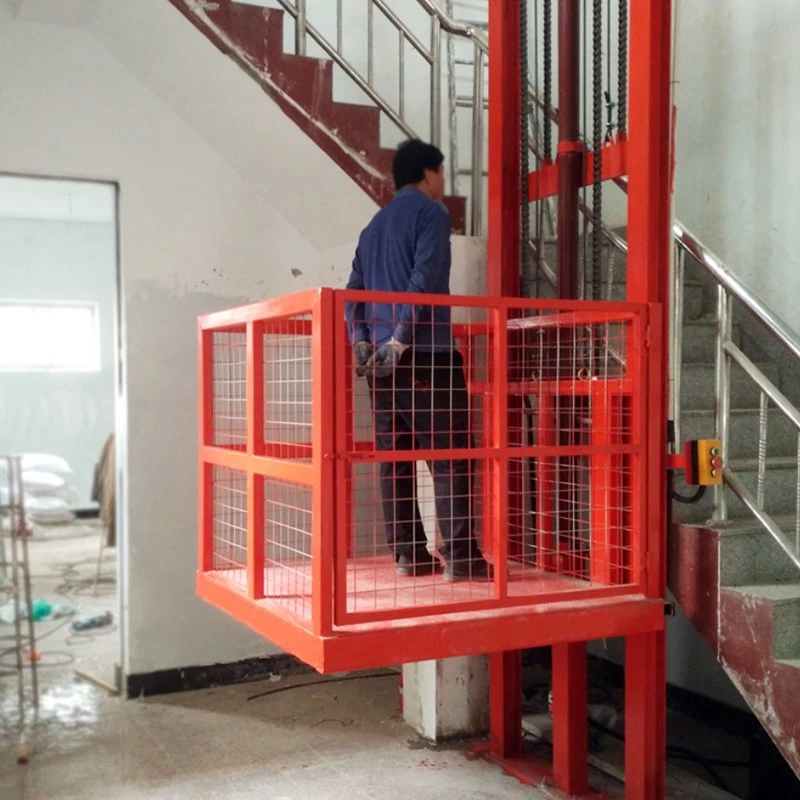

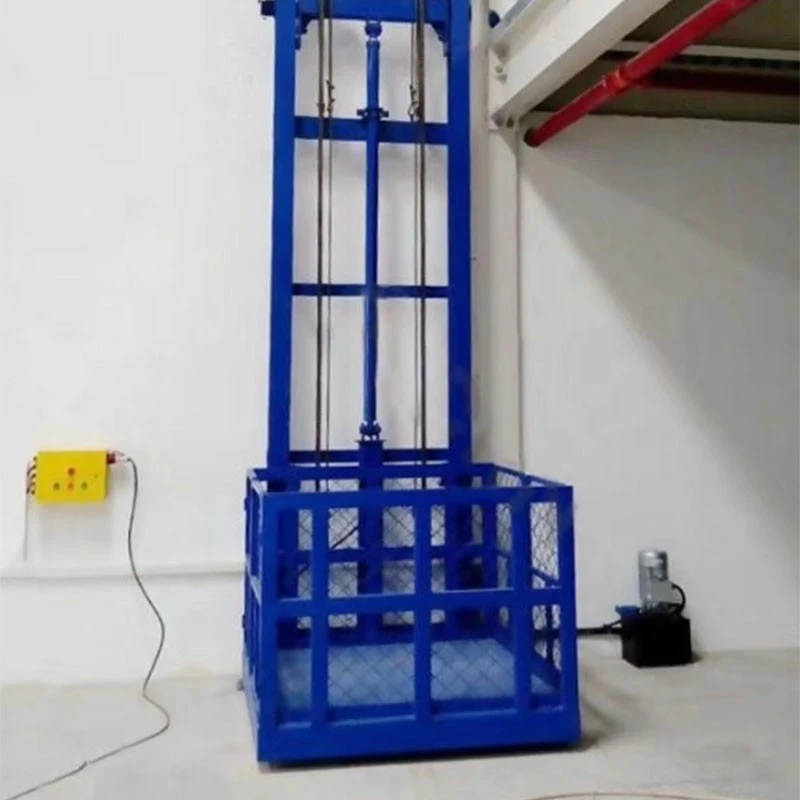

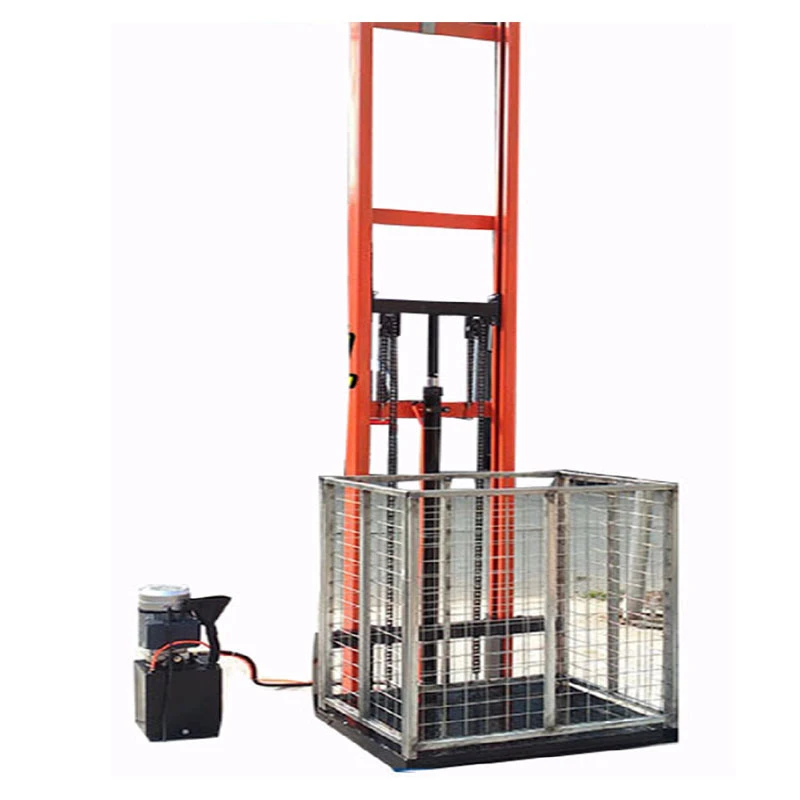

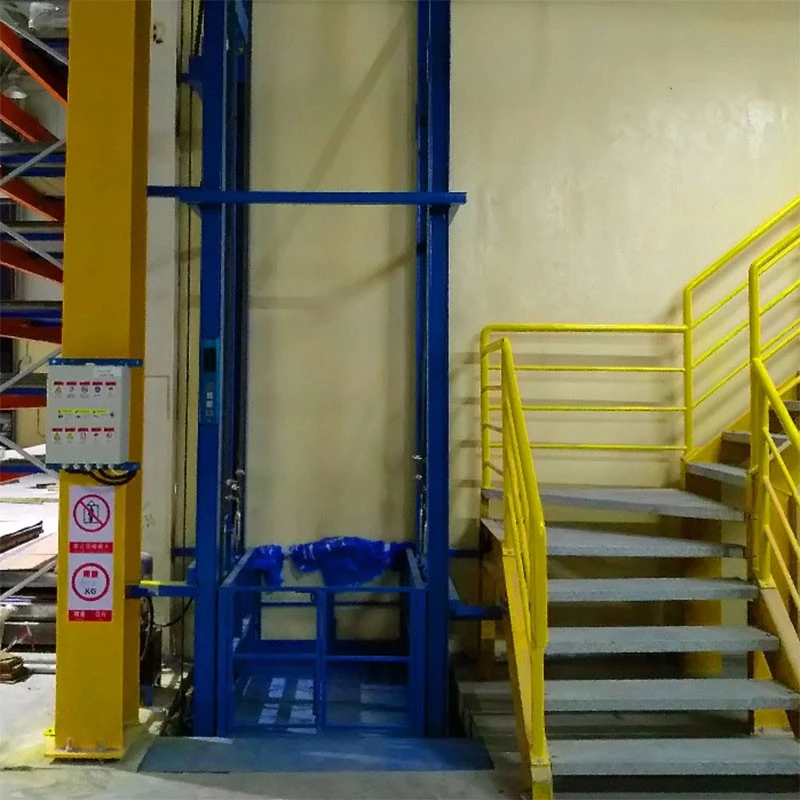

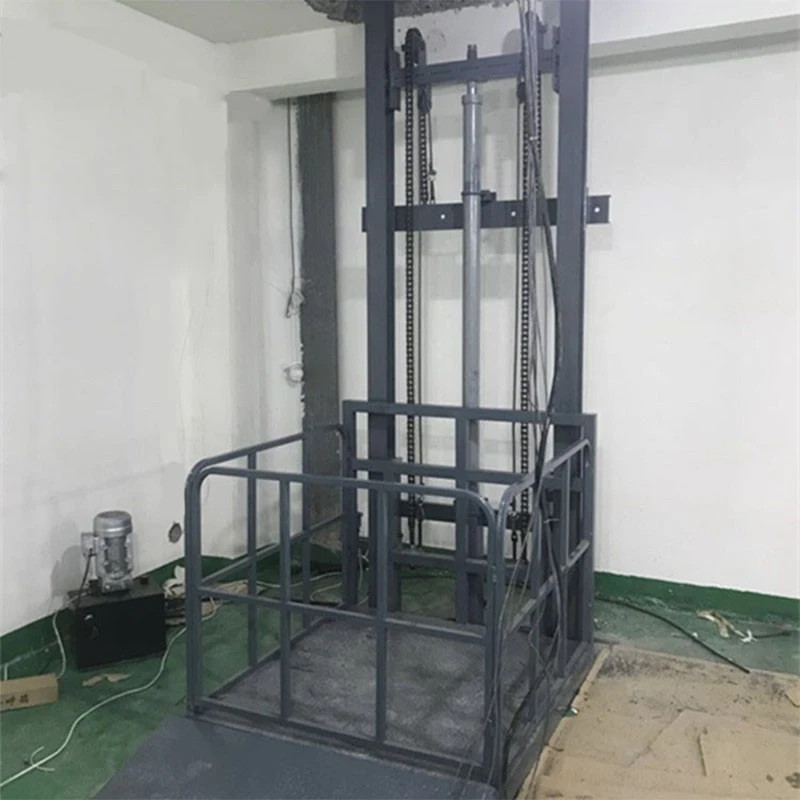

A single-rail freight elevator (also known as a single-column freight elevator) is a vertical lifting device designed for the efficient transport of goods between different floors. This type of elevator uses a single guide rail column as its main support structure, providing a compact and economical solution for small to medium-sized freight handling applications. It is widely used in warehouses, factories, retail stores, mezzanines, and production lines where space is limited and installation conditions vary.
The single-rail freight elevator relies on a single main column to support and guide the lifting platform, achieving a lightweight and space-saving design. Driven by a hydraulic pump station and cylinders, the elevator operates smoothly and quietly, with powerful lifting force. The platform size, load capacity, and lifting height can be customized to different floor layouts and operational needs. Single-rail freight elevators do not require traditional elevator shafts or machine rooms and can be installed on floors, concrete walls, or steel frames.
Compared to double-rail or traditional freight elevators, single-rail freight elevators are less expensive, making them ideal for budget-sensitive projects. Furthermore, their compact structure saves space; the single-column design requires minimal installation space, making them ideal for narrow passageways or small mezzanine openings.
Single-rail freight elevators are suitable for light to medium loads, typically ranging from 200 kg to 1500 kg. With fewer components and a simpler structure, they facilitate quick daily inspections and have low maintenance costs. Manufacturing and installation can be completed in a short time, making them ideal for renovation projects or rapid upgrades.
Optional features for single-rail freight elevators include: Overload protection, Hydraulic explosion-proof valve, Door interlocking system, and a safety chain or wire rope as a backup.
