Single Mast Man Lift
| MODEL | AWP4 | AWP6 | AWP8 | AWP10 |
| Max lifting height | 4m | 6m | 8m | 10m |
| Working height | 6m | 8m | 10m | 12m |
| Load capacity | 150kg | 150kg | 150kg | 125kg |
| Platform size | 0.64*0.58m | |||
| Voltage | 220V 380V 110V (customized) | |||
| Overall size(mm) | 1180x750x1650 | 1280x800x1650 | 1280x800x1980 | 1360x850x1980 |
| Net weight | 250kg | 280kg | 300kg | 320kg |

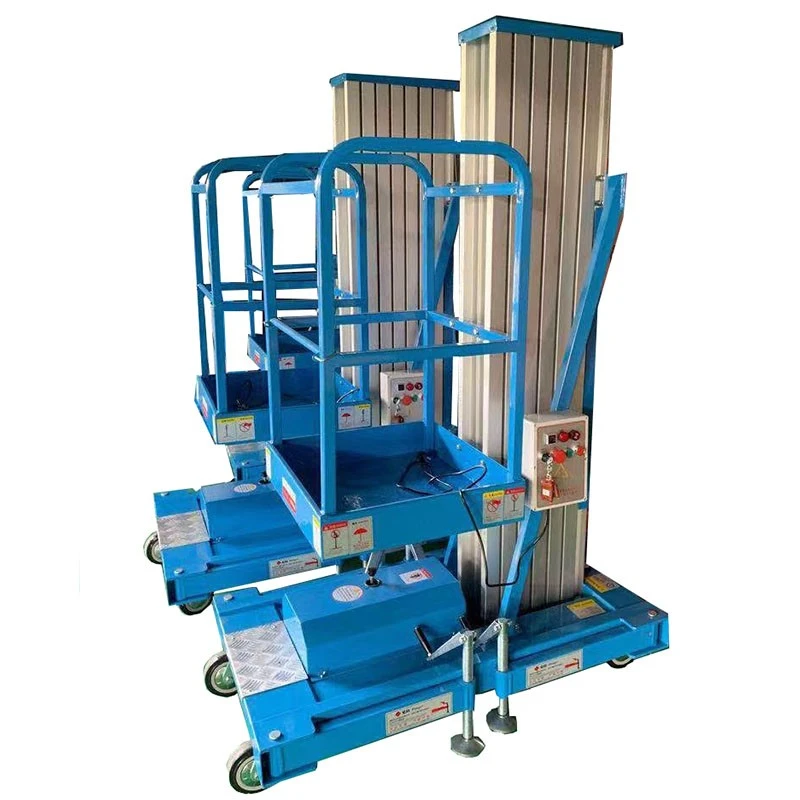

Single-Column Aluminum Alloy Lifting Platform Introduction
The single-column aluminum alloy lifting platform is a lightweight, compact, and efficient aerial work platform designed specifically for single-person aerial work. Manufactured from high-strength aerospace-grade aluminum alloy profiles, it boasts excellent structural rigidity while maintaining a lightweight overall weight, making it ideal for applications requiring frequent movement, narrow passageways, or where ground load-bearing capacity is limited.
The main features of the single-column aluminum alloy lifting platform are as follows:
1. Lightweight Aluminum Alloy Mast
The high-strength single mast provides excellent stability and effectively reduces platform sway. Furthermore, the aluminum alloy material offers corrosion resistance and a refined appearance.
2. Compact Structure and Easy Mobility
The slim body allows the lifting platform to easily navigate standard doorways and narrow corridors. Equipped with casters or a push handle, the platform can be easily moved by a single person.
3. Safe and Stable Lifting System
The lifting process of the aerial work platform is driven by a hydraulic or electric pump, ensuring smooth and quiet operation. Multiple safety protection measures, such as overload protection, emergency descent devices, and stabilizing outriggers, ensure safe operation.
4. Simple and Easy to Operate
The platform is typically equipped with a ground and platform control panel, allowing users to operate it from any position. It can be equipped with either AC power or DC battery power, providing flexible energy options.
Single-column aluminum alloy lifting platforms are widely used in locations requiring safe and efficient single-person high-altitude work, including:
Hotels and shopping malls
Exhibition centers and conference halls
Office buildings and airports
Indoor equipment maintenance, cleaning, wiring, lighting installation, and decoration work.
